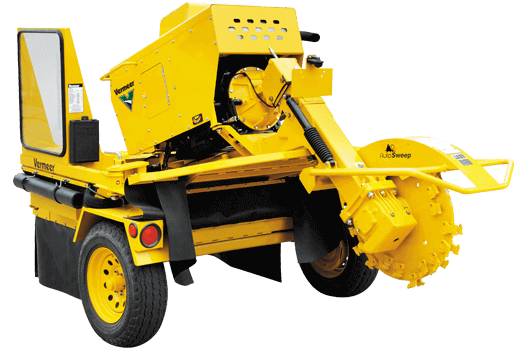

SC802 Stump Cutter
- The tow-behind powerhouse
- Designed for productive performance
- Maximized cutting dimensions
General
| Manufacturer | Vermeer |
| Model | SC802 Stump Cutter |
| Category | Landscape, Rental, Tree Care |
| Price | Request a Quote |
| Year | 2024 |
Engine - Option one
| Oil Volume with Filter | 10.6qt (10L) |
| Oil Filter | Spin-on |
| Make and Model | Deutz TD2.9L Tier 4 Final |
| Maximum Angle of Continuous Operation | 30deg |
| Clutch Type | Electric clutch with brake |
| Gross Horsepower (Maximum) | 74hp (55.2kw) |
| Cooling Medium | Air-cooled head, oil-cooled block |
| Max Fuel Consumption | 4.6gph (17.4lph) |
| Fuel Tank Capacity | 25gal (94.6L) |
| Torque (Max) | 188ft-lb (254.9Nm) |
| Alternator | 95 amp |
| Recommended Oil | 15W40 Deutz |
| Air Cleaner | Dry-type with precleaner, restriction indicator, evacuator valve and safety element |
| Number of Cylinders | 4 |
| Fuel Type | Diesel |
Hydraulic System
| Filtration Method | 6 micron full flow return filter; suction strainer |
| Recommended Oil Type | Vermeer HyPower 68 |
| Pump Flow at Maximum RPM | 3.2gpm (12.1L/min) |
| System Type | Gear pump, pressure balanced |
| Directional Control | Yes |
| Tank capacity | 6gal (22.7L) |
| Flow Control | Yes |
| System relief pressure | 2000psi (137.9bar) |
General Dimensions and Weights
| Tongue Weight - Engine Option One | 460lbs (208.7kg) |
| Weight - Engine Option One | 4400lbs (1995.8kg) |
| Sound Power | 108.0 dB(a) |
| Sound Power - Engine Option Two | 112.3 dB(a) |
| Tongue Weight - Engine Option Two | 380lbs (172.4kg) |
| Weight - Engine Option Two | 4040lbs (1832.5kg) |
| Height | 79in (200.7cm) |
| Width | 79.8in (202.7cm) |
| Length | 167.3in (424.9cm) |
| Length - Tongue Extended | 234in (594.4cm) |
| Length - Tongue In | 167.3in (424.9cm) |
Chassis
| Frame Description | Reinforced 4" (10.2 cm) square tubing |
| Brake Type | Self-adjusting 12" x 2" (30.5 x 5.1 cm) electric with breakaway switch, max. total capacity 6000 lb (2721.6 kg) |
| Fender Description | Weld-on |
| Hitch Type | Pin, pintle, 2 1/6" (1.6 cm) ball |
| Wheels - Standard | 16 in x 6 in (40.6 cm x 15.2 cm) 6 bolt circle |
| Tires - Standard | ST235/80/R16 load range G |
| Axle/Suspension | Rubber torsional axle |
| Type - Option One | Weld-on |
| Capacity - Option One | 6000 |
| Trailer Light Type | LED |
| Control Station Description | Swing-out |
| Manufacturer - Option One | Dexter |
| Toolbox Description | Standard |
| Tongue Extension | 60" (152.4 cm) |
| Tongue Description | Extendable |
| Operator Vision Shield Description | Abrasion-resistant coated poly carbonate |
Electrical System
| Radio Remote Control | None |
| Switches | Ignition, throttle and clutch |
| Battery | 950 |
| Standard Gauges | MFD Multifunction LCD Display |
| System Voltage | 12 Volt |
| Display | Multifunction Display (MFD) |
| Controller | Operation with AutoSweep |
| Shutdown System | Low oil pressure, high engine coolant temp |
| Warning Lights | Engine warning |
Cutterwheel Drive Components
| Lower Gearbox | Straight bevel |
| Oil Type - Lower Gearbox | SAE 75W90 synthetic gear oil |
| Oil Capacity - Lower Gearbox | 2.2qt (2.1L) |
| Driveshaft | Rubber dampened with 2 universal joints |
| Oil Type | SAE 75W90 synthetic gear oil |
| Oil Capacity | 1.7qt (1.6L) |
| Driveshaft - U Joints | Two standard with double lip seal |
| Upper Gearbox | Straight bevel |
Cutterwheel System
| Cutterwheel Speed | 881rpm |
| Cutterwheel Thickness | .9in (2.4cm) |
| Number of Indexes | 2 |
| Number of Teeth | 42 |
| Tooth Description | Yellow Jacket™ cutter system |
| Number of Pockets | 42 |
| Cutterwheel Guard | Standard |
| Reversible Pockets/Teeth | Yes |
| Cutterwheel Straight Line Dimension | 96in (243.8cm) |
| Cutterwheel Cut Above Ground | 35in (88.9cm) |
| Cutterwheel Cut Below Ground | 25in (63.5cm) |
| Chip Containment | 68cu ft (1.9cu m) |
| Cutterwheel Diameter | 28in (71.1cm) |
Other Options
| Special Paint | Optional |
| Extended Warranty | Optional |
| Preventive Maintenance | Optional |
